Harvia WHP1500M

Sauna Wood Stove Chimney Kit, 1500mm, Black Steel

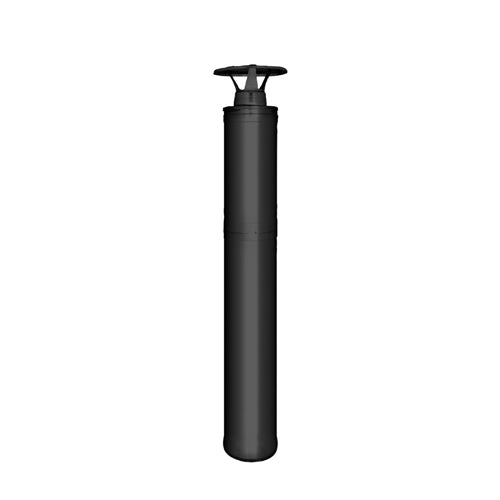

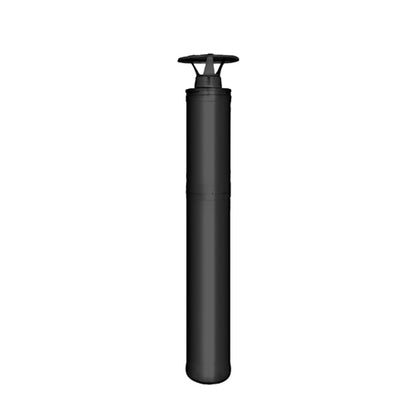

The Harvia WHP1500M Chimney Kit in Black Stainless Steel is the modern, yet simple solution to your sauna chimney needs. It withstands extensive changes in temperature and can be used with wood-burning sauna stoves, smaller fireplaces, and iron stoves in detached sauna buildings. Thanks to its intuitive design, this chimney can easily be extended. Designed to be used with slanted roof.

The Harvia WHP1500M Chimney Kit in Black Stainless Steel is an easy-to-install stylish chimney solution. The chimney withstands extensive changes in temperature and has mainly been designed for use with wood-burning sauna stoves, smaller fireplaces, and iron stoves in detached sauna buildings.

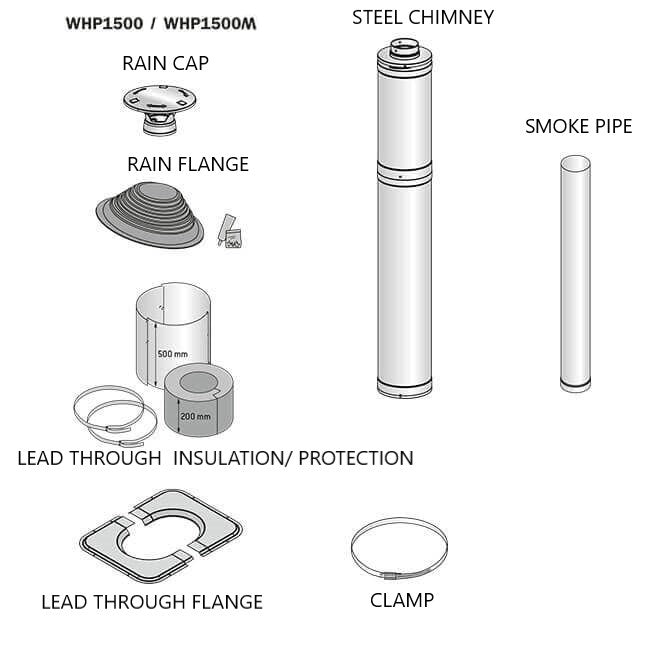

The standard delivery includes a black powder coated steel chimney and a utility box with a rain cap, a rubber rain flange and an installation set for rain flange, a stainless steel lead-through flange for the ceiling, a lead-through insulation and protector. The package also includes a non-isolated smoke pipe. Supplementary parts are available as accessories for this chimney. Thanks to an ingenious mechanism, the supplementary parts are wound together and the smoke pipes are also equipped with slots to lock them together. This prevents movement caused by temperature changes. Indoors, the chimney can be installed up to a height of 9' 8" without support and outdoors the corresponding self-supported installation height is 6' 6".

The rated maximum temperature of combus­tion gases for a furnace connected to a steel chimney is 600 ºC. The external diameter of the chimney is 8.66" and the diameter of the smoke pipe is 4.53". The safety distance to inflammable materials is 3.94". The Harvia chimney has a CE-marking, so the product complies with all international fire and operational safety requirements. The black powder coated steel chimney is soot fire pro

Features

• Black powder coated steel
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Works with wood-heated stoves
• Works with smaller fireplaces
• Works with iron-stoves
• Able to be easily extended
• Touch protection is not needed if installed in a sauna
• Sootfire resistant
• Freeze thaw resistant
• Made in Finland
• 2 year warranty

Includes

• Black powder coated chimney
• Utility box
• Non-insulated smoke pipe
• Rain cap
• Rubber rain flange
• Installation set for rain flange
• Stainless steel lead-through flange for ceiling
• Lead-through insulation and protector
• Installation manual
• 2 year warranty

Specifications

Technical

Installation and Operation Manual
Harvia-WHP1500-10M.pdf
