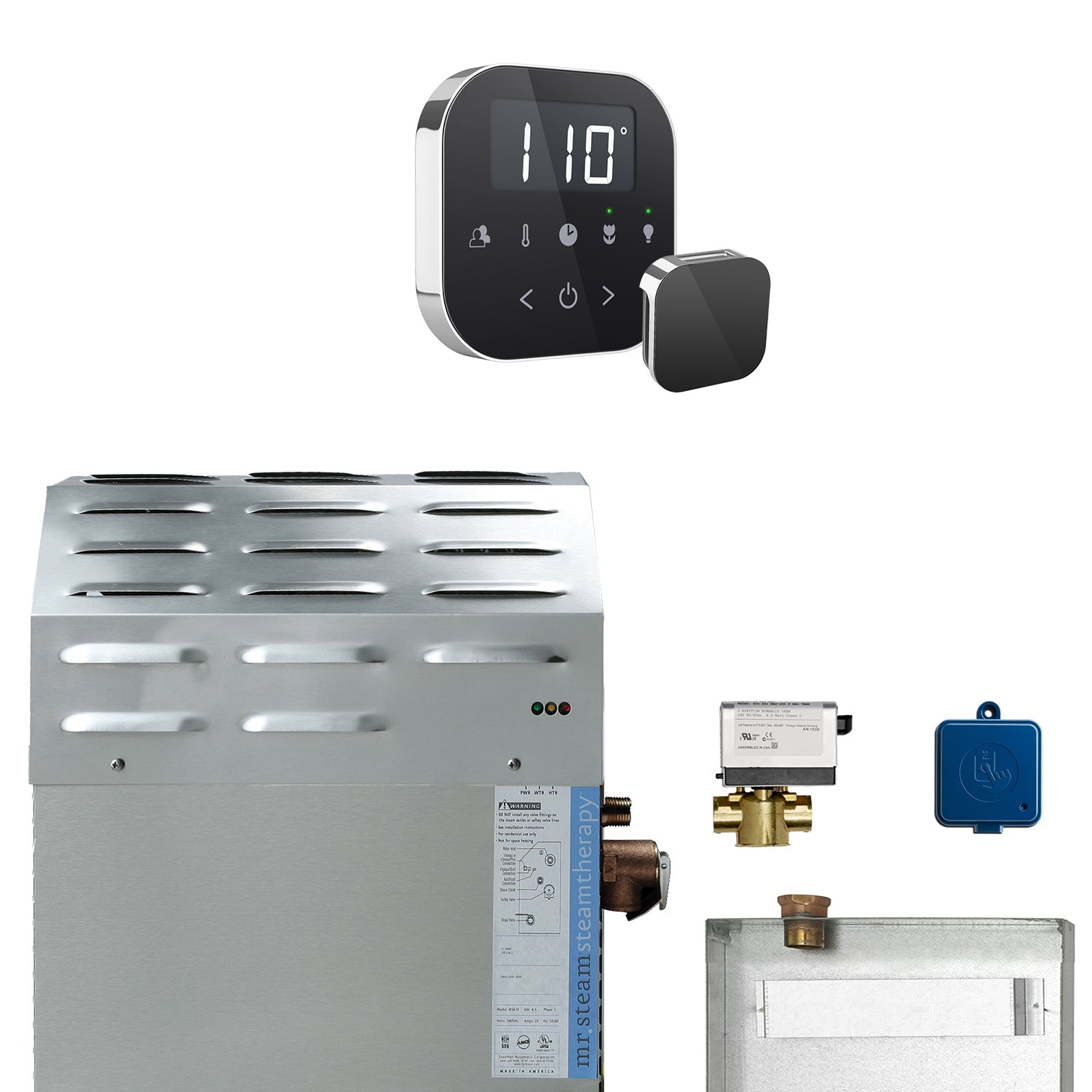

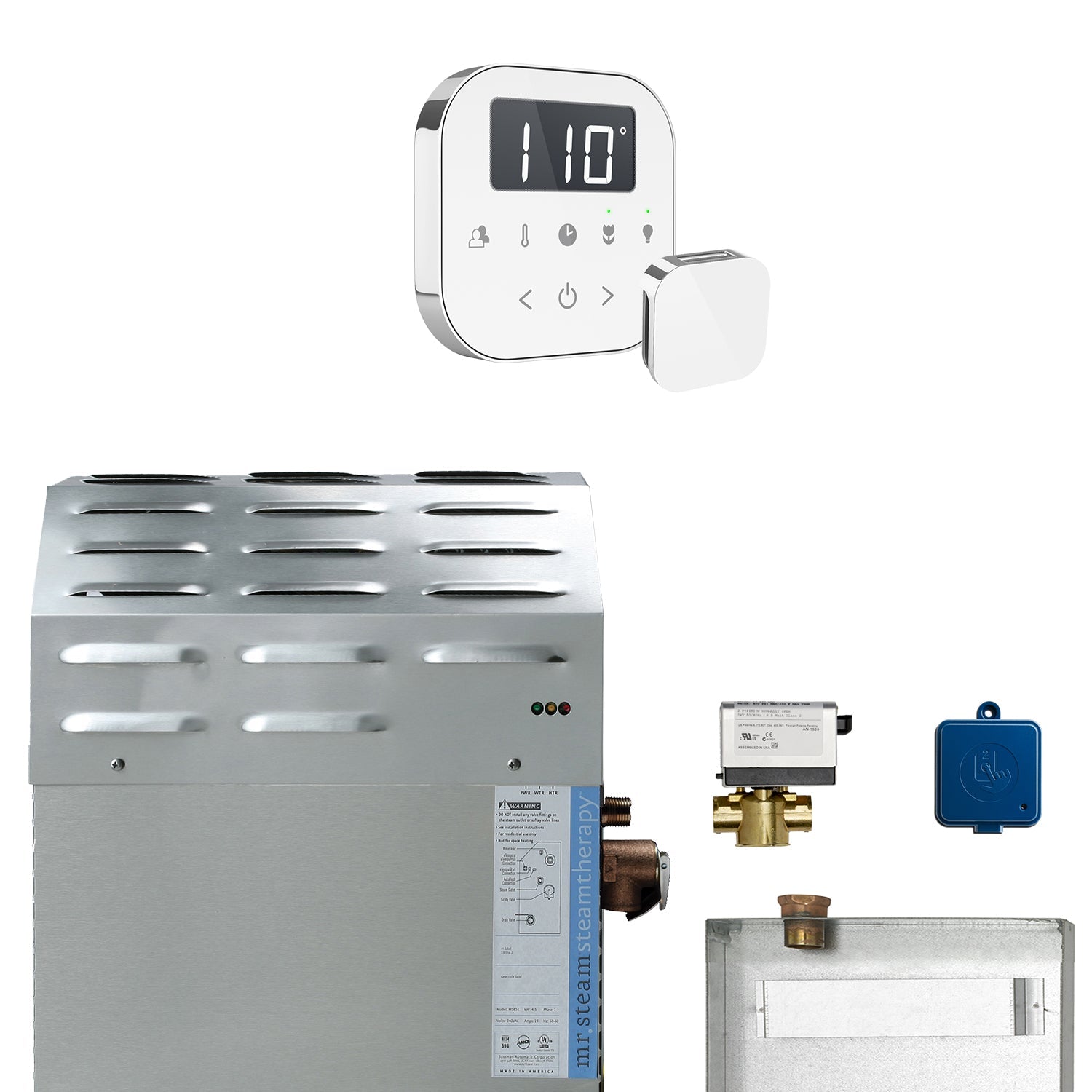

Super (AirButler) 10 kW (10000 W) Steam Shower Generator Package with AirTempo Control

This all-in-one, ready to install package gives you everything you need to create your own fully functional steam shower system at home, and at a substantial discount. Featuring a completely wireless control installation, the 100 water proof AirTempo Control is the package centerpiece. This portable, powerful, wireless SteamShower Control mounts effortlessly just about anywhere€”on glass, tile, or most other shower surfaces. This control is ideal for steam shower retrofits. The convenient docking station lets you take it to another room (up to 60 feet from your steam generator) to start your steam shower ahead of time so it's ready when you are. The AirButler Package combines the AirTempo control with the Aroma Glass SteamHead in black or white glass face, the SteamLinx mobile app system, AutoFlush System, a condensation pan, and a Steam Generator. One selection and you€™re ready to bring serenity and wellness into your home.

Features:

• 60 minute automatic cutoff, low voltage board, designed for easy access safe service
• Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
• Easily install spa therapy accessories or components such as AromaTherapy, ChromaTherapy, Steamlinx, and more
• Exclusive micro processor operating system is the brains of our intelligent steam generator
• Free from defects in materials and craftsmanship for its lifetime. Mr.Steam will repair or replace (at its option) a Generator which fails to conform to this warranty
• Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
• LED indicators to help you troubleshoot any connection and maintenance challenges
• Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
• Reliable, industrial grade, and the industries largest copper heating element heats fast and is easy to remove and service
• US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety

Specifications:

• Amps: 42 A
• Compatible Generator: MSSUPER1EC1
• Construction Material: Stainless Steel
• Control (Adj. Session?): Yes
• Control (Adj. Temp.?): Yes
• Control (Clock?): No
• Control (Screen Size): 2 IN.
• Control (Steamhead Included?): Yes
• Country Of Origin: United States
• Generator (Auto-Drain?): No
• Generator (Auto Shut-Off?): Yes
• Generator (Btu): 34121.42
• Generator (Drain Location): Right
• Generator (Drain Opening): 1/2" NPT
• Generator (End Connection Type): NPT
• Generator (Fuel Type/Power Options): Electric
• Generator (Gpc): 1.4 GAL. PER 20 MIN CYCLE
• Generator (Gpm): 0.061 GAL.
• Generator (Inlet/Outlet): 3/8" NPT Water Inlet

  1/2" NPT Steam Outlet

• Generator (Line Fuse): 60
• Generator (Coverage (Cu. Ft.)): 339 CU.FT.
• Generator (Max Pressure): 0 PSI
• Generator (Max Temp.): 45 °C
• Generator (Max Time (Min)): 60 MIN
• Generator (Mbh): 34.12
• Generator (Phase): 1 PH
• Generator (Pipe Fitting & Tubing): 3/8" NPT Water Inlet

  1/2" NPT Steam Outlet

• Generator (Steam Prod. Time (Min)): 15 MIN
• Generator (Wire Gauge): 8 AWG
• Installation Type: Hardwired
• Kilowatts: 10 kW
• Volts: 240 V
• Warranty Length: Limited 2-Years & Lifetime Warranty
• Warranty Type: Mr.Steam® warrants that every Mr.Steam® Residential Steambath Generator (€œGenerator€�) will be free from defects in materials and workmanship for its lifetime. Mr.Steam® will repair or replace (at its option) a Generator which fails to conform to this warranty. If the warranty claim is made within two years from the date of purchase of the Generator, Mr.Steam® will provide free in-home warranty service, parts and labor. If the warranty claims is made after two years from the date of purchase of the Generator, Mr.Steam® will provide a lifetime warranty on parts.

  Mr.Steam will repair or replace (at its option) Mr.Steam Controls and Accessories if they fail to conform to this limited warranty. All warranty work will be performed without charge when the Mr.Steam Control and Accessory is returned to the location designated by Mr.Steam within 2 years of the date of purchase. To obtain warranty service, call 1-800-76-STEAM (East Coast) or 1-800-72-STEAM (West Coast).



• Watts: 10000 W

General Installation Guide

Installation Manual

Benefits Brochure

Steam Benefits Brochure

Technical Specification Chart

Warranty Sheet

SKU : 10C1AEAA000
